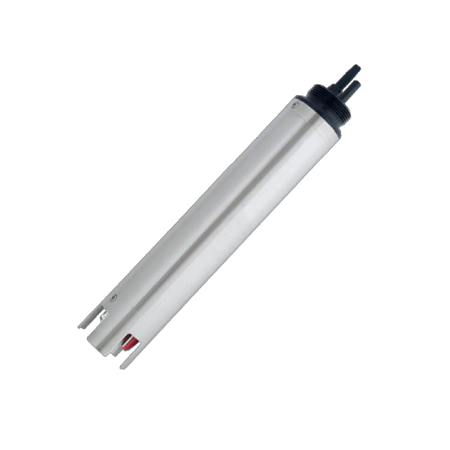

he SMART ABAM - Ammonia Sensor measures the concentration of dissolved Ammonia nitrogen (NH4+-N) in water. The sensor uses three electrodes to determine the NH4+-N concentration, an Ammonia Ion Electrode, a Potassium Ion Electrode, and a pH Electrode. The SMART ABNO - Nitrate Sensor measures the concentration of dissolved nitrate-nitrogen (NO3--N) in water. The sensor uses two electrodes to determine the NO3--N concentration, a Nitrate Ion Electrode and a Chloride Ion Electrode. The SMART ABAM/ABNO sensor has a 1-1/2” NPT rear-facing thread for attaching an extension/immersion tube for easy installation from catwalks or handrails. The ABNO sensor is submersible with an IP68 degree of ingress protection. (The SMART ABAM sensor can not support its weight by the attached cable) A removable electrode guard facilitates easy electrode replacement when necessary. The sensor features an internal digital signal conditioning unit that allows the sensor to be mounted up to 300 meters from the controller
Categories: Brix | Water Analyzer, Industrial Analyzer Sensors
| Measuring Principle | : Ion-selective electrodes method |
| Operate Pressure | : Max. 0.5 bar |
| Pressure | : Max. 6 bar |
| Material | : SS316, PVDF, PTFE, Glass |
