DES 16

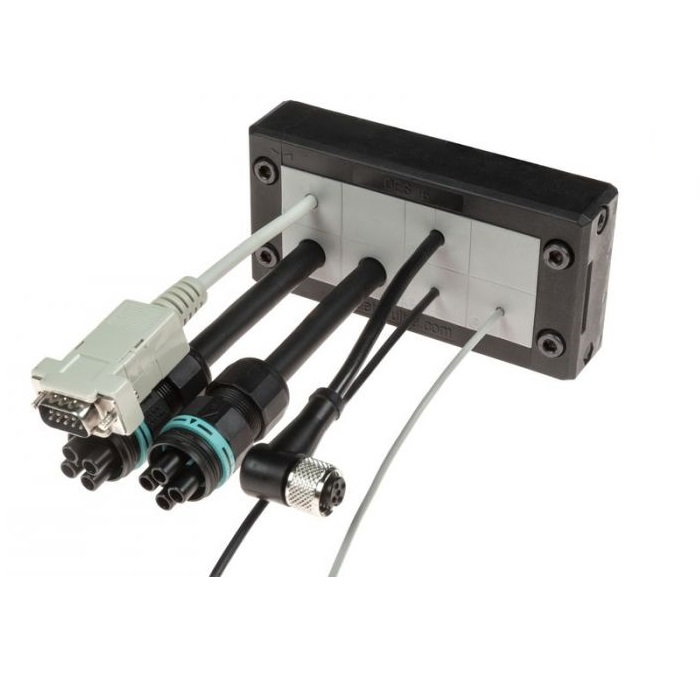

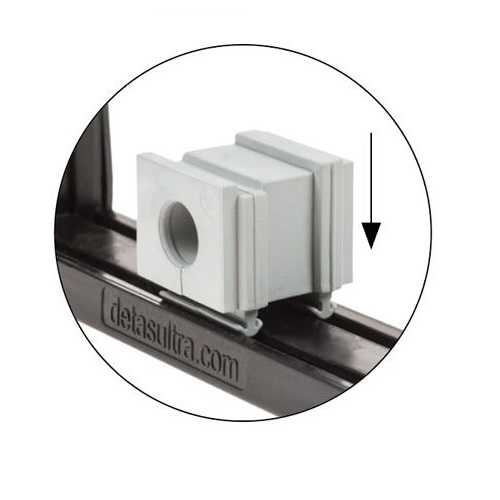

The DES 16 cable entry system consists of a splittable frame designed to accommodate small (SPP), multiple (X) or large (SPG) grommets for cables with and without connectors. The grommets can be freely positioned into the frame. With all combinations of grommets, single, double, quadruple, big, the IP66 and NEMA 4X* are guaranteed. The overmolded gasket guarantees faster installation times and the complete V0 self-estinguishing of the system.

Categories: DES frames

Download PDF

Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
Frame screws in AISI304 Stainless Steel
IP66 certified, Nema 4X* with any combination of grommets
Strain relief according to EN 62444
Robust construction IK10
Integrated gasket
ATEX version on request
Threaded inserts version on request

Material: PP+GF
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C… +155°C (static)
Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157

View more products

DES L5

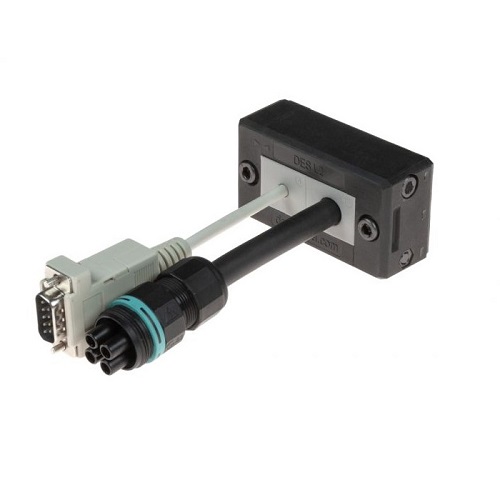

DES L2
