DES 24 CLICK

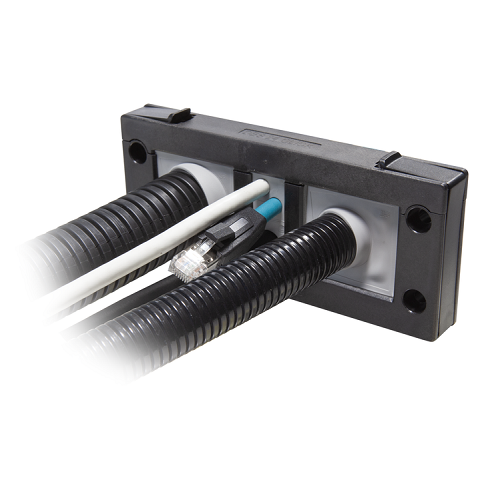

The DES 24 CLICK splittable frame allows to accomodate up to 40 cables with or without connectors with diameters from 2 to 31 mm. The frame is firmly closed with two side hooks. The frame accepts 10 small grommets or 1 big grommet and 6 small grommets.
Categories:
DES CLICK frames
Download PDF
- Can be used with small and large grommets
- Without screws, snap closure
- Strain relief according to EN 62444
- Compact dimensions
- IP54 protection
- External gasket included
- Threaded inserts version on request
- UL94-V0 for black and grey grommets
- Material: PC+GF
- Flammability: self-extinguishing according to UL94-V0
- Temperature: -40°C… +155°C (static)
- Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
