DES 24MX15

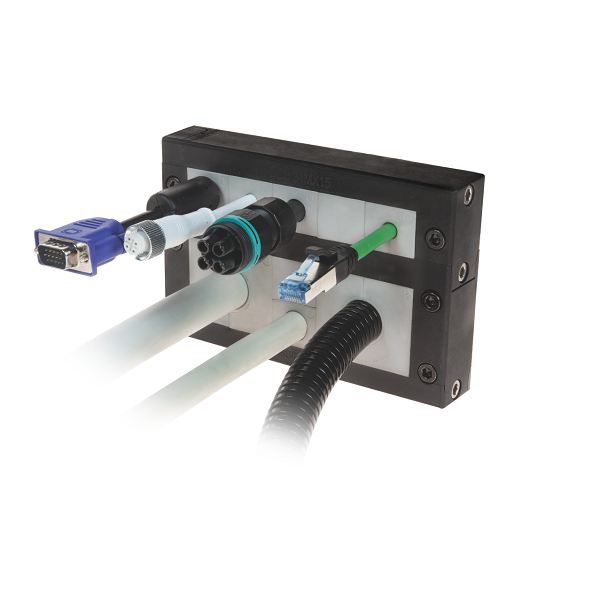

The DES 24MX15 splittable frame allow up to 60 cables with or without connector or one or two cables up to 35mm diameter to pass through electric cabinet or machines walls.The small and big grommets can be freely positioned inside the frame. The DES 24MX15 is tightened thanks to three stainless steel screws on the right side.
Categories:
DES M frames
Download PDF
- Multiple configurations with small and large grommets
- Frame screws in AISI304 Stainless Steel
- IP54 protection
- Strain relief acc. to EN 62444
- Robust construction IK10
- External gasket included
- Threaded inserts version on request
- Material: PP+GF
- Flammability: self-extinguishing according to UL94-V0
- Temperature: -40°C… +155°C (static)
- Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
