DES 380MX

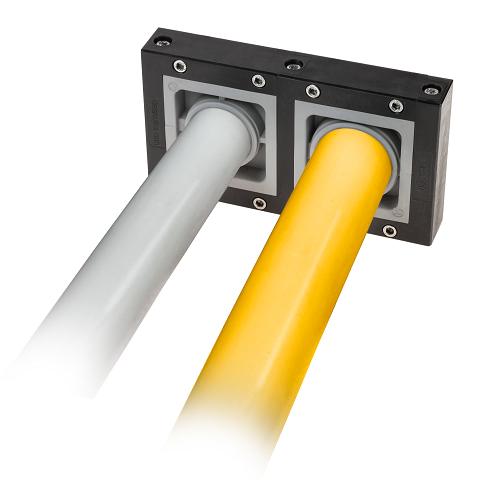

The splittable DES 380MX frames are used for routing big diameter cables and corrugated pipes through electric, machinery or main cabinets.The solution is modular meaning that the customer can buy the 4 frames solution for using them for 4 or less cables. Then he can add an accessory and increase easily the number of cables limitless.
Categories:
DES 380 frames
Download PDF
- Fast and easy fixing of big diameter cables and corrugated pipes
- Modular system
- Diameters from 36 to 65 mm
- Horizontal or vertical installation
- IP54
- No gasket required
- AISI 304 screws
- Material: PP+GF
- Flammability: self-extinguishing according to UL94-V0
- Temperature: -40°C… +155°C (static)
- Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
