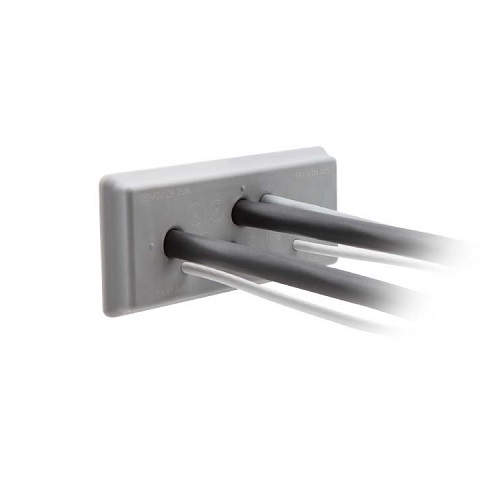

DES PDM 24 ZIP
DES PDM 24 ZIP entry plates are used for cables without connectors and feature an elegant design with rounded corners that prevent the accumulation of dirt and facilitate cleaning
Fastening is done from the inside square with 4 screws or by snapping on thanks to the hooks in the rear area.
Categories:
PDM Cable Entry Plates
Download PDF
- Internal fixing with threaded inserts for M4 screws screws
- For large number cables without connectors
- High strain relief thanks to the double membrane
- Cost efficient solution
- Wall thickness for snap fastening 1.5-2mm
- Material: TPE
- Flammability: UL94-V0, self-extinguishing
- Temperature: -40°C… +110°C (static)
- Properties:halogen-free, silicone-free
