Fluidcontrolterminal FCT

A multi-use device reduces installation space and makes maintenance easy. Flange Dimensions according to DIN 24557 Part 2. Air breather filter with integrated level and temperature monitoring. Filling port with a quick disconnect device. Sample port with a quick disconnect device. Visual monitoring of the air breather filter optional.

Categories: Bühler Technologies, Buhler | Fluid Control

Download PDF

Hydac air breather filter.
Quick and easy adjustable level contacts.
Plug and play system § Up to 4 contacts.
Bi-metal contacts, Pt 100 or 4-20 mA signal output for temperature.
NV 74D equipped with a display and control unit.
Easy operation via 3 keys.
Highly visible LED display.
Up to 4 programmable temperature switching outputs.
Optional continuous temperature output signal, programmable 4-20 mA, 0-10 V or 2-10 V.

Level and/or temperature control.
Up to 4 contacts.
230 V applicable § Bi-metal contacts, Pt 100 or 4-20 mA signal output for temperature.
NV 71D equipped with display and control unit.
Easy operation via 3 keys.
Highly visible LED display.
Up to 4 programmable temperature switching outputs.
Optional continuous temperature output signal, programmable 4-20 mA, 0-10 V or 2-10 V.

Operating pressure	: Max. 1 bar
Operating temperature	: 80 °C
Dimensions L*	: 280, 370, 500 (standard), variable (up to 1420)
Lengths (all versions)	: 280, 370, 500 mm (standard)
Weight at L=500 mm	: Approx. 5 kg

View more Bühler Technologies products

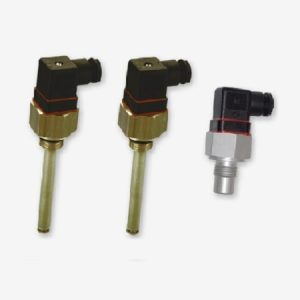

Bimetal temperature switch TSM-Atex, TSE-Atex
