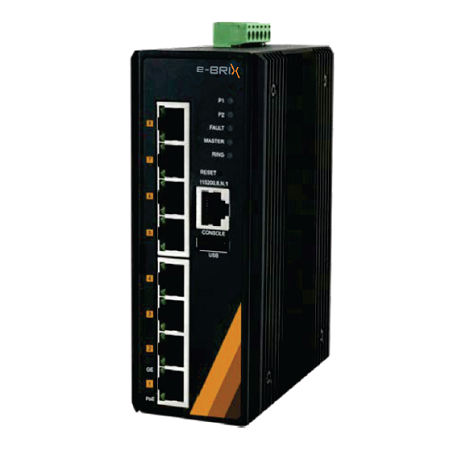

12-Port Industrial Gigabit Ethernet Switch

12-Port Industrial Gigabit Ethernet Switch 8*10/100/1000Tx + 4*100/1000 S FP Slot, 12-48VDC Power Input

Categories: E-Brix | Automation & IOT, e-Brix | Interface & Media Converter, Ethernet Switches

8-port 10/100/1000Tx Gigabit Ethernet
4-port 100/1000 SFP Slot
Redundant Power Input Design, 12-48VDC
Built-in Relay Output Warning for Power Failure
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range – STD: -10°C ~ 65°C

8-port 10/100/1000Tx Gigabit Ethernet
4-port 100/1000 SFP Slot
Redundant Power Input Design, 12-48VDC
Built-in Relay Output Warning for Power Failure
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range – STD: -10°C ~ 65°C

Fiber Ports	: 4*100/1000 SFP Slot
Input Voltage	: 12-48VDC, Redundant Input
Overload Current Protection	: Yes
Reverse Polarity Protection	: Yes
Power Consumption	: 12 Watts
Housing	: Metal, IP30 protection
Dimensions	: 46 x 142 x 99 mm (W x H x D)
Weight	: Unit Weight: 1.36kg, Shipping Weight: 1.56kg
