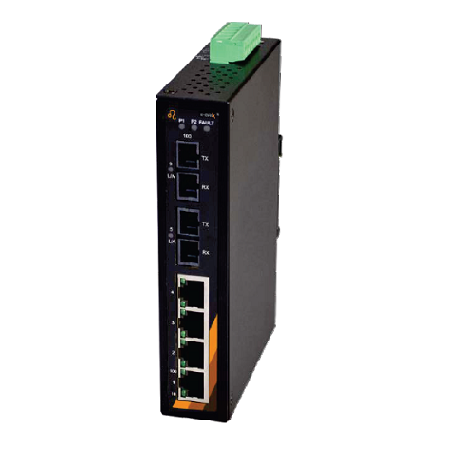

6-Port Industrial Unmanaged Ethernet Switch

6-Port Industrial Unmanaged Ethernet Switch 4×10/100Tx + 2x100Fx, 12-48VDC Power Input

Categories: E-Brix | Automation & IOT, e-Brix | Interface & Media Converter, Ethernet Switches

6-Port Industrial Ethernet Switch
2-port 100Fx – SC connector (Multi Mode)
Redundant Power Input Design, 12-48VDC
Built-in Relay Output Warning for Power Failure
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range – STD: -10°C ~ 65°C

6-Port Industrial Ethernet Switch
2-port 100Fx – SC connector (Multi Mode)
Redundant Power Input Design, 12-48VDC
Built-in Relay Output Warning for Power Failure
IP30 Rugged Metal Case Design
DIN-Rail Mounting, Wall Mounting
Operating Temperature Range – STD: -10°C ~ 65°C

Input Voltage	: 12-48VDC, Redundant Input
Overload Current Protection	: Yes
Reverse Polarity Protection	: Yes
Power Consumption	: 6Watts
Housing	: Metal, IP30 protection
Dimensions	: 30 x 142 x 99 mm (W x H x D)
Weight	: Unit Weight: 0.5kg, Shipping Weight: 0.7kg
Mounting	: DIN-Rail Mounting, Wall Mounting
Operating Temperature	: STD: -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	: -40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity	: 5 to 95%, (non-condensing)
