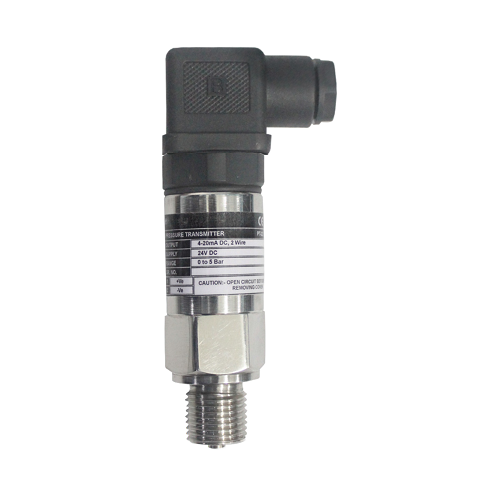

Pressure Transmitter – PT-22
Brix series PT-22 are Digital Pressure Transmitter for fast, easy & trouble free operation. These transmitters are designed to cover the majority of industrial applications such as clear Gases & Liquids. Electrical output is in the form of 4-20 mA DC proportional to the Input Pressure. All wetted parts are stainless steel & hermitically welded.
Categories:
Instrumentation
Download PDF
- Piezo Resistive Sensor
- Measuring Range -1 to 700 Bar
- Handy & Maintenance Free
- Reliable & Cost Effective
- Ingress Protection IP 65
- Also available with Display
- Sensor Type : Piezo Resistive
- Pressure Range : AP URL : From 0.1885 to 300 psi & GP URL : From 0.1885 to 10000 psi
- Power Supply : 24V DC Two Wire Loop Powered / 12 to 36V DC
- Output : 4 to 20 mA DC, 0 to 10 V
- Output Load : Max 600 Ω
- Process Temperature : -20 to 120 °C max
- Enclosure : SS 316 with IP 65 Ingress Protection
- Area Classification : Field Mount Weather Proof IP65
- Certification : CE
