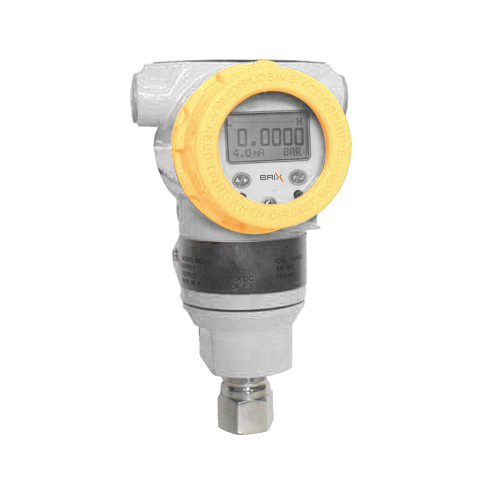

Smart Pressure Transmitter – PT100S
Brix series PT100S (GP & AP) can accurately measure the pressure of gases, vapors and liquids used in refineries, petrochemicals, oil & gas, power, chemical industries, food processing & pharmaceutical industries. Based on a mechanical and rugged silicon sensor & capacitive sensor, the 100SPT (GP & AP) is suitable for Absolute & Gauge Pressure Measurements.
Categories:
Instrumentation
Download PDF
- Piezo Resistive & Capacitive Sensor
- ATEX Certified
- Long Operational Life
- Excellent Long Term Stability
- Two Wire System
- Range-ability 100:1
- LCD Display with Backlight
- Faster Response Time
- Application flexibility with HART Communication
- 2-wire-system : 4-20mA, 0-10V & 4-20mA with HART
- Supply Voltage : 12.5 – 45 VDC
- Signal Range : 3.9mA – 20.8mA
- Ambient Conditions : -20 to 70°C
- Insulation Resistance : >100 MΩ at 100VDC
- Wetted Parts : S S304 / S S316 / SS316L / Hastelloy C
- Ingress Protection : IP 67
- Certification : CE & ATEX
