SPG WP

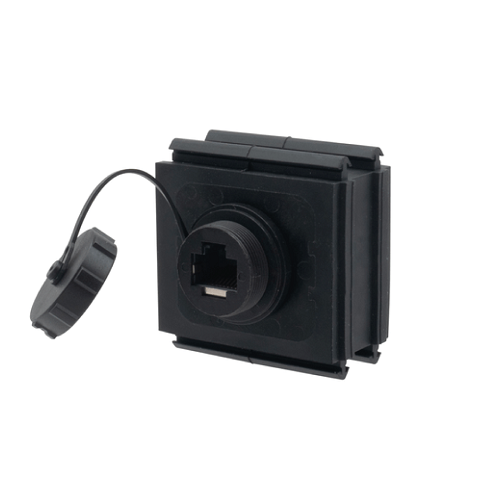

SPG WP grommets allow the integration of USB, RJ45 and HDMI panel sockets directly on the DES chassis.
The benefit is the system versatility that allows the quick connection and disconnection of cables (data, power, pneumatics, etc.) without the need to open the machine cabinet. This plug-in system simplifies the design of increasingly modular machines.
Categories:
Grommets
Download PDF
- Grommet holders with 27 and 20 mm diameter panel sockets, USB, RJ45, HDMI and USB-C
- 180° Female/Female System
- Useful for quick connections without opening the electrical cabinet
- Plastic panel sockets with screw-on end caps
- IP66 protection
- Material: TPE, PP+GF insert
- Flammability: self-extinguishing according to UL94-V0
- Temperature: -40°C… +110°C (static)
- Properties: halogen-free, silicone-free
