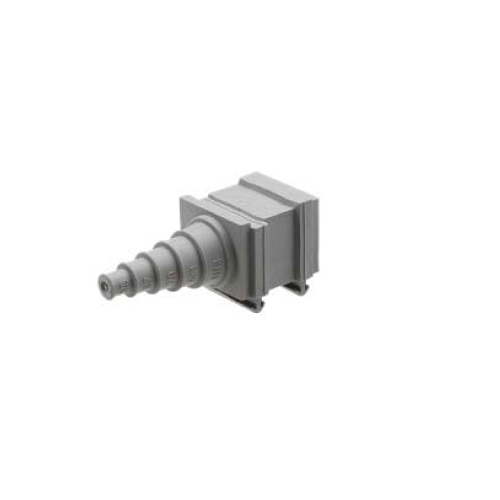

SPP P
The SPP P grommets are suitable for cables without connectors. They are used cutting the cone corresponding to the diameter of the cable. The cable is then routed into the grommet where the internal shape is increasing the strain relief. Is it also possible to secure the cable with a cable tie. The T version can be installed in the upper line of the DES series.
Categories:
Grommets
Download PDF
- Universal solution for cables without connectors with diameter from 2 to 14mm
- Can be used in all DES series frames.
- IP66
- UL94-V0 for both colours
- Material: TPE
- Flammability: self-extinguishing according to UL94-V0 (grey or black)
- Temperature: -40°C… +110°C (static)
- Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
