by AXIS

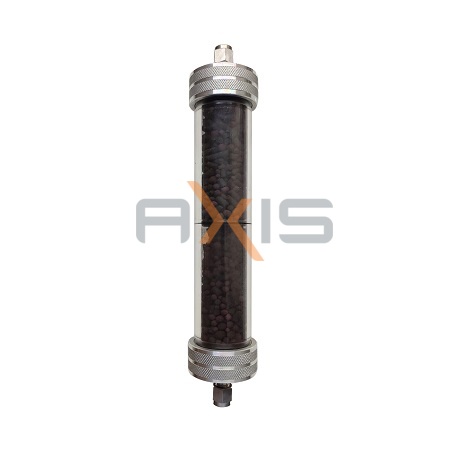

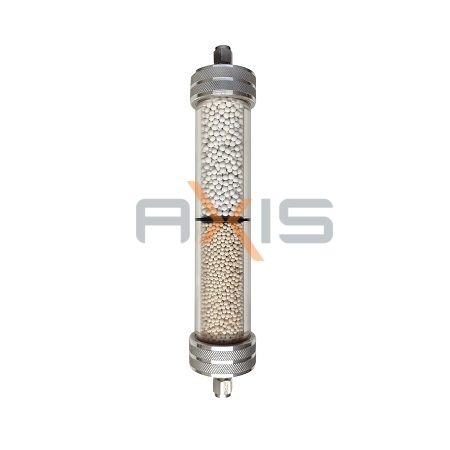

The Axis Air Scrubber helps to protect analyzers from corrosion due to acidic gas stream components, especially NO, NO2, SO2, H2S, HF, O3, VOCs, CO2, CO, etc. The gas scrubbers can be used to generate zero air where NO, NO2, SO2, H2S, HF, O3, CO2, CO, and VOCs in certain limits are present. This can also be installed after the sample gas cooler which ensures no carryover of acid and increases the life of the downstream components, especially the sample cell. The Air scrubber media follow the chemisorption process to remove contaminant gasses from the airline. The contaminant’s gasses remove through adsorption, absorption & neutralization from the main gas. The targeted hazardous gasses are trapped by chemical beads and converted into harmless by-products which remain in the beads. Life depends on factors like the presence of aggressive components, flow rate, and period till the sample passes through the Gas Scrubbers.
Categories: Axis Products, AMISON | GAS Components, Sample Gas Filters / Scrubbers
| Mounting | : Wall & exclusively vertical |
| Body Material | : Polycarbonate |
| Line Pressure | : < 8=6 kg/cm2 |
| End Connection | : 1/4” OD / 1/8” OD/ 3/8” OD |
| Ambient temperature | : -20°C to +50°C (Max.) |
