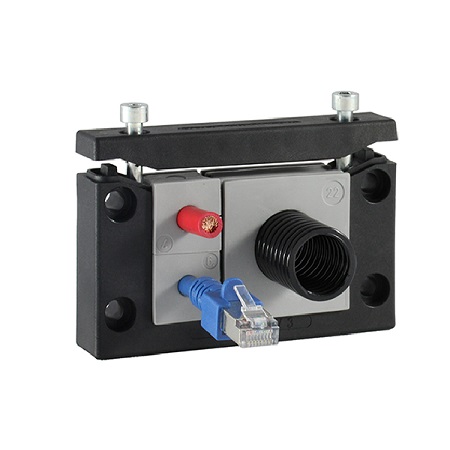

Split cable entry system for routing cables with connectors, providing an IP54 / up to UL type 12 rating. Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm. The new cable entry system is easy to install. Cable grommets are placed into compartments in the frame and are securely fixed to the frame during assembly. The KEL-U 10 is the same size as a standard 10 pin industrial connector. Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed. All frame systems come with a rubber gasket.
Categories: Axis Products
Fast and easy assembly.
Maintain manufacturer’s warranty on pre-terminated cables.
Retrofi ts, repairs and maintenance can be done much more easily and quickly.
High cable density, wide variety of grommets.
Strain relief according to EN 62444.
High stability, vibration resistant.
| Material: | Polyamide (PA) |
| Flame class : | UL94-V0 |
| IP Rating: | IP54, with gasket and correct selection of the cable grommets |
| Temperature range: | – 40°C to + 140°C (static). |
