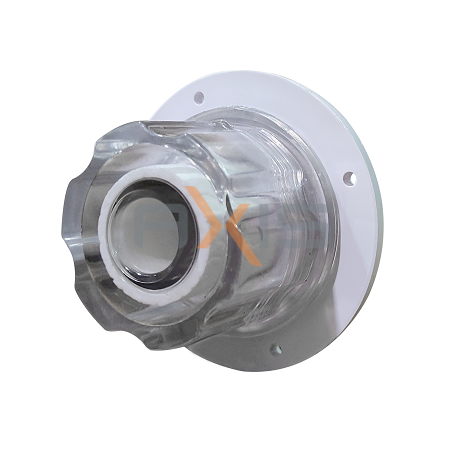

In the portal, the analysis system sample must be free from dust and contamination. Consistent and long-term operation of any process analyzer depends upon the sample conditioning system which must be free from dust and solid particulate. The conditioning system must be lightweight and compact which is why require small components. Axis brings special filter housing (SGF-2) for these kinds of applications, also installed in a 19” rack system. This SGF-2 is screwed into the front panel and sample connections at the backside. Easy to remove or replace filter elements when required.
Categories: Axis Products, Condensate Removal, AMISON | GAS Components
| Mounting | : Panel |
| Sample | : Gas |
| Max operating pressure | : 2 bar |
| Pore size | : Less than 2 micron |
| Ambient or media temp | : 80°C |
