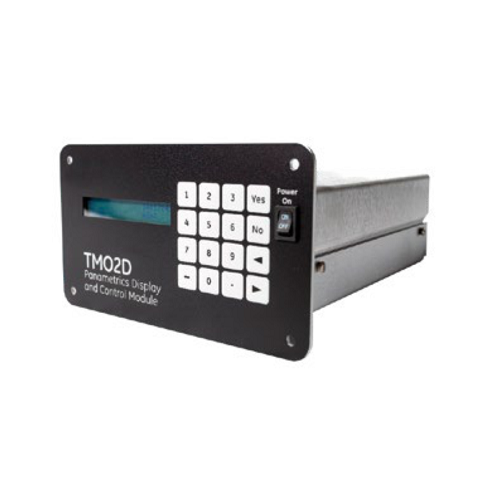

The TMO2D is an optional display and control module that enhances the performance and operation of transmitters such as the XMO2, XMTC or OXY.IQ. It provides a two-line x 24-character backlit LCD display, display and option programming via keyboard, recorder outputs, alarm relays, and relays for driving sample system solenoids for automatic zero and span calibration, as well as a 24 VDC power supply for the transmitter.
Categories: Panametrics | Moisture and Gas Analysers
| Electronics display and output accuracy | : ±0.1% of span |
| Digital output | : RS232C serial port |
| Analog input | : One 4 to 20 mA input from any transmitter |
| Power | : 100/115/220/240 VAC ±10%, 50/60 Hz, 35 W maximum provides 24 VDC, 1 A maximum to transmitter |
