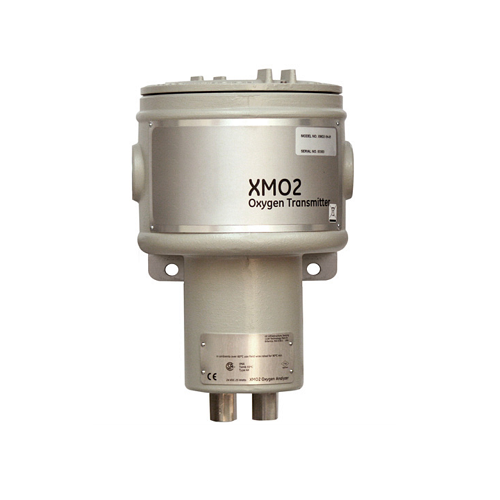

Oxygen Analyzer – XMO2

The XMO2 thermo paramagnetic oxygen transmitter is the most stable oxygen analyzer available on the market today. It represents the state of the art in oxygen measurement. With the XMO2 transmitter, reliable process oxygen measurement can be as easy as temperature or pressure measurement.

Categories: Panametrics | Moisture and Gas Analysers

Download PDF

Measurement ranges from 0.01 percent to 100 percent O2 in gases
Explosion-proof and flameproof enclosure with weatherproof protection allows sensor to be remotely mounted at the measurement point
Push-button, single or dual gas calibration
Compact, rugged sensor design with no moving parts provides long term reliability and trouble-free operation
Dual-bridge measurement circuit compensates for variations in background gas composition
Unique dual-chamber, temperature-controlled cell design provides resistance to contamination and flow fluctuation
Computer-enhanced accuracy of 1 percent of span and linearity of better than 0.5 percent of span

Measurement resolution	: 0.01 mA
Power	: 24 VDC ±4 VDC, 1.2 A maximum
Digital output	: RS232, three-wire
Ambient temperature range	: –4 to 104°F (–20 to 40°C), standard cell operating temperature of 113°F (45°C) 23 to 131°F (–5 to 55°C), optional cell operating temperature of 140°F (60°C)

View more products

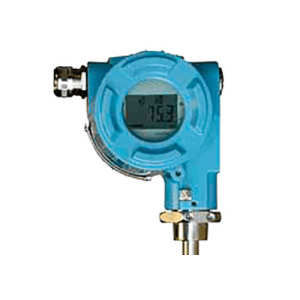

Moisture Transmitter - DewPro® MMR31
