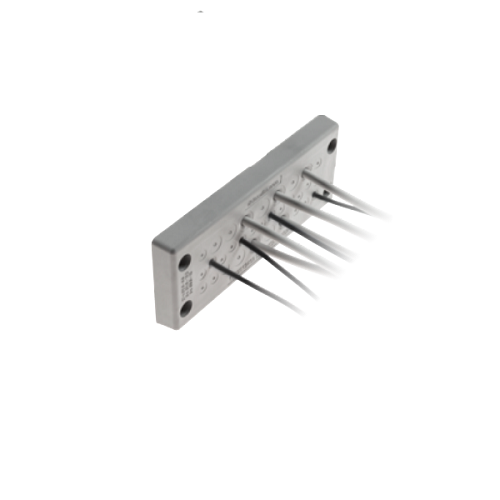

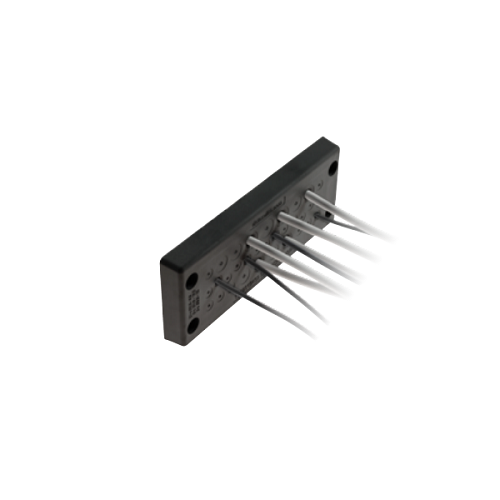

DES PDM 24 ATEX
The DES PDM 24 is an innovative alternative to standard cable glands on electrical, electronic and telecommunication cabinets and equipment. The cable is pushed through the front membrane, whilst the second membrane increases the strain relief and liquid resistance. DES PDM 24 ATEX series can be used in zone 2 and 22.
Categories:
Frames and plates ATEX
Download PDF
- For large number of cables without connectors
- High strain relief thanks to the double membrane
- Cost efficient solution
- IP66 and Nema 4X* certified
- Threaded inserts or plastic rivets version on request
- Material: TPE, halogens and silicones free
- Flammability: self-extinguishing acc. to UL94-V0
- Temperature: -40°C… +110°C (static)
