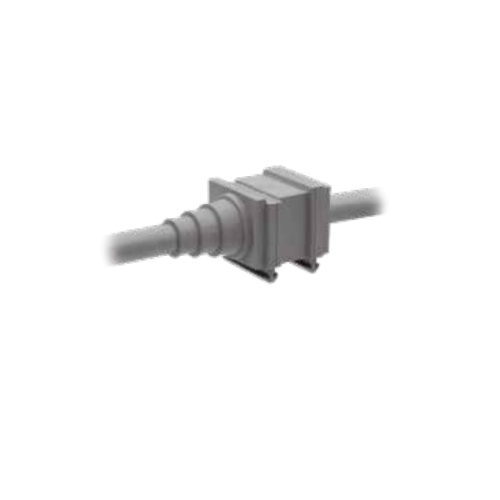

SPP P ATEX
The SPP P ATEX grommets are suitable for cables without connectors. They are used cutting the cone corresponding to the diameter of the cable. The cable is then routed into the grommet where the internal shape is increasing the strain relief. Is it also possible to secure the cable with a cable tie. SPP P ATEX series can be used in zone 2 and 22.
Categories:
Frames and plates ATEX
Download PDF
- Universal solution for cables without connectors from 3 to 14mm diameter
- Can be used on all DES Frames and divisible cable glands
- IP66
- UL94-V0 for both grey and black colors
- Material: TPE, halogens and silicones free
- Flammability: self-extinguishing acc. to UL94-V0
- Temperature: -40°C… +110°C (static)
