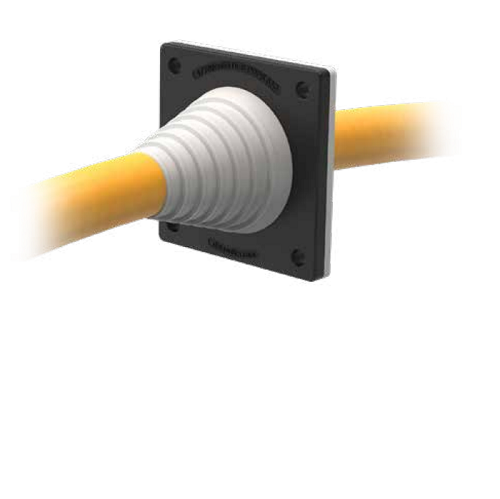

DES PDPS ATEX
The DES PDPS ATEX is available in M63 and M75 sizes, enabling non-terminated cables with diameter from 23 to 64 mm to pass through the walls of the electrical cabinets. The installation of the PDPS is made from the front part, not needing to screw a nut from the opposite part of the wall. The reinforced base plate increases the stability when large cables are used. DES PDPS ATEX series can be used in zone 2 and 22.
Categories:
Frames and plates ATEX
Download PDF
- For diameters from 2,5 to 64 mm
- Reinforcing base plate
- Cost efficient solution
- UL94-V0 for grey and black
- ATEX version on request (Group 7)
- Material: TPE+PA, halogens and silicones free
- Flammability: self-extinguishing acc. to UL94-V0
- Temperature: -40°C… +110°C (static)
