DES PDM S ATEX

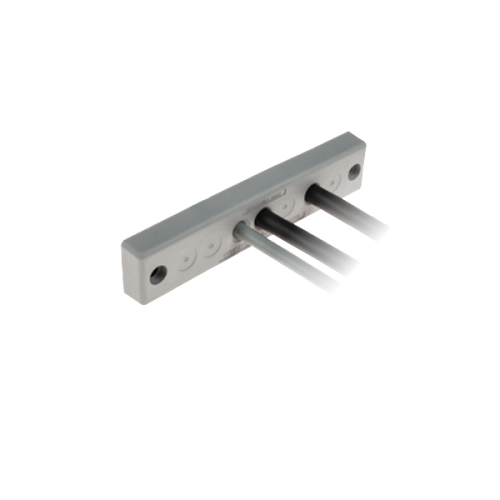

The DES PDM S is an innovative alternative to standard cable glands on electrical, electronic and telecommunication cabinets and equipment. The cable is pushed through the front membrane, whilst the second membrane increases the strain relief and liquid resistance. DES PDM S ATEX series can be used in zone 2 and 22.
Categories:
Frames and plates ATEX
Download PDF
- For several number of cables in a limited space
- High strain relief thanks to the double membrane
- Cost efficient solution
- High IP grade (IP66)
- Threaded inserts or plastic rivets version on request
- Material: TPE, halogens and silicones free
- Flammability: self-extinguishing acc. to UL94-V0
- Temperature: -40°C… +110°C (static)
