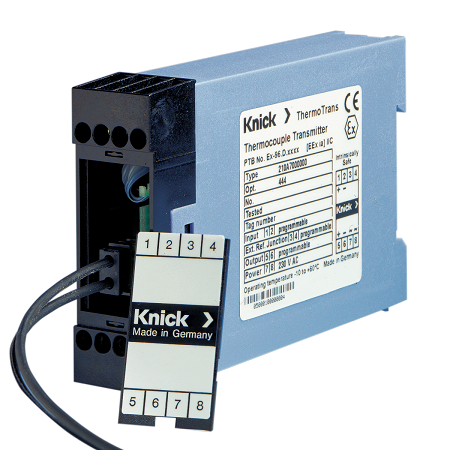

Thermocouples have very low resistance, making them interference-resistant. Their preferred field of application is high temperature ranges, for example, for measurements in ovens, smelting plants, and plastic machines. The range of standard thermocouples is extremely broad. The Thermo- Trans 210/211 transmitters therefore provide connection possibilities for all common thermocouples. To avoid long compensation lines, an external reference junction can be used in addition to the internal one. For reference junctions with thermostat, the reference temperature can be a fixed setting or measured with a Pt100.
Categories: Transmission & Signal, Knick | Interface
| Ambient temperature | : -10 to +55 °C |
| Design | : Modular housing A7, 22.5 mm wide, screw terminals See dimension drawings for further measurements |
| Mounting | : For 35-mm DIN rail acc. to EN 60715 |
| Weight | : Approx. 300g |
