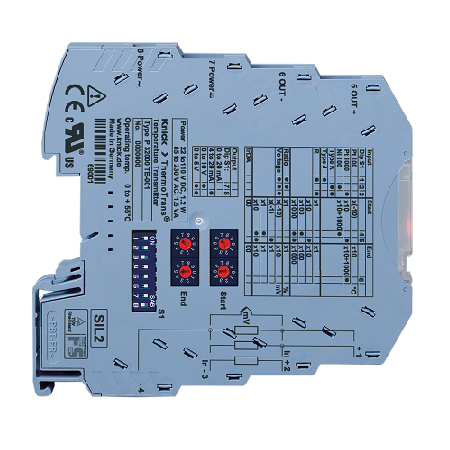

The universal ThermoTrans P 32100 temperature transmitters provide connection possibilities for all common thermocouples and resistance thermometers. They can be flexibly adapted to the respective measuring task using DIP and rotary encoder switches or via an IrDA interface. Input voltage signals up to ±1000 mV are converted into standard 0/4 to 20 mA or 0 to 10 V signals. This enables the low-cost implementation of current measurements using shunt resistors, for example. Special measuring tasks can be solved with ThermoTrans devices which Knick configures according to individual specifications. Fixed-range devices without switch are used, for example, when manipulations or mix-ups must be precluded.
Categories: Transmission & Signal, Knick | Interface
| Ambient temperature | : 0 to +55 °C |
| Design | : Modular housing with screw terminals, 6.1 mm wide See dimension drawings for further measurements. |
| Mounting | : For 35-mm DIN rail acc. to EN 60715 |
| Weight | : Approx. 60g |
