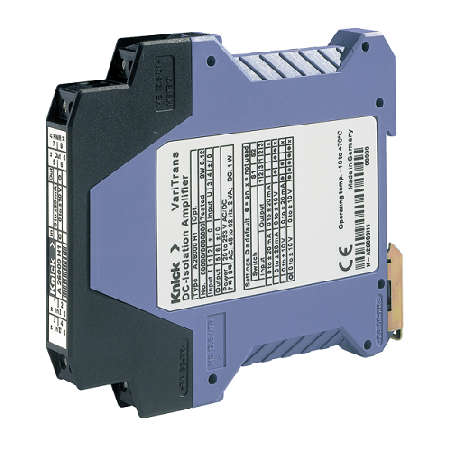

Knick provides a tailor-made solution. Thanks to the calibrated selection of the input and output parameters using DIP switches, VariTrans A 26000 universal signal conditioners can be used without complicated readjustment. The broad-range power supply for all common supply voltages from 20 to 253 V AC/DC offers maximum flexibility. At a width of just 12.5 mm, the modular housing with pluggable screw terminals allows for simple and fast assembly and pre-wiring of enclosures. Housings with fixed screw terminals are also available for extremely high mechanical loads. The easy-to-open housing allows for simple configuration of the input and output ranges and provides good protection against contact and unintentional adjustment.
Categories: Transmission & Signal, Knick | Interface
| Ambient temperature | : -10 to +70 °C |
| Design | : Modular housing, 12.5 mm wide, see dimension drawings for further measurements, pluggable screw terminals |
| Mounting | : For 35-mm DIN rail acc. to EN 60715 |
| Weight | : Approx. 150g |
