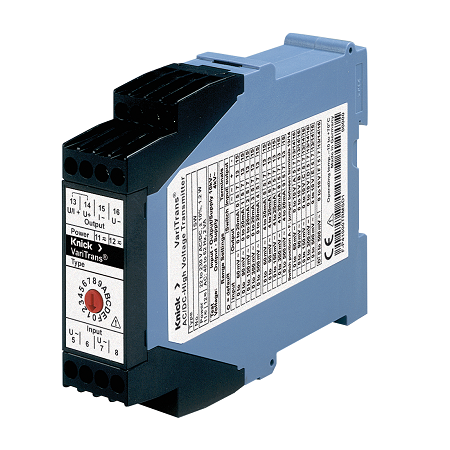

The VariTrans P 41000 TRMS are available for any input voltages from 60 mV AC to 10 V AC. Analog DC signals are available at the output: 0...20 mA, 0...10 V, and 4 ... 20 mA. The true RMS conversion is performed with high precision up to a crest factor of 5. It operates over a frequency range of 16.7 Hz to 1000 Hz. 16 input/output signal combinations can easily be selected with a rotary encoder switch on the front of the device. There is no need for a complicated on-site adjustment with a screwdriver, calibrator, and multimeter. Drift problems due to unstable trimming components – e.g., potentiometers – are avoided. Thanks to the easy scalability of the range selection, the devices can easily be customized to individual customer solutions. Up to 16 customized signal combinations can be implemented in one device and configured optimally for the respective application.
Categories: Transmission & Signal, Knick | Interface
| Ambient temperature | : -10 to +70 °C |
| Design | : Modular housing with screw terminals, 22.5 mm wide See dimension drawings for further measurements. |
| Mounting | : For 35-mm DIN rail acc. to EN 60715 |
| Weight | : Approx. 180g |
