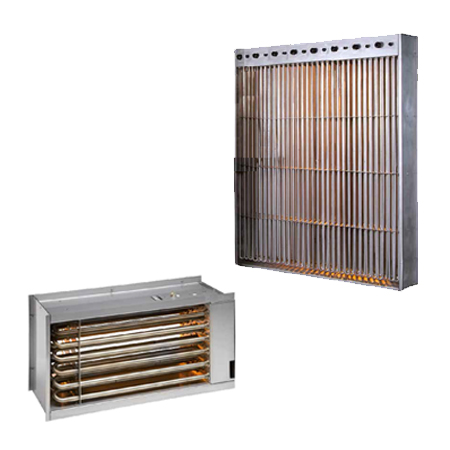

Air heaters of series 804 are specially designed for use in heating, ventilation, and air conditioning technology. Due to the lightweight design, these units offer ideal conditions for heating flowing air. As a standard, the bolted duct consists of aluminum sheet AlMg 3, with circumferential flange without bores according to DIN 24158, Sheet 3, row 3. The flange width ranges from 25 and 35 mm. The heating insert consists of exchangeable non-radiating tubular heating elements.
Categories: Analytics & Process, Schniewindt | Heating
The material used for our air heaters:
Options:
| Type | : 3,6-250 |
| Dimension | : 250 x 250 x 160 mm |
| Output | : 3,6kW |
| min. Flow rate m³/h | : 400 |
