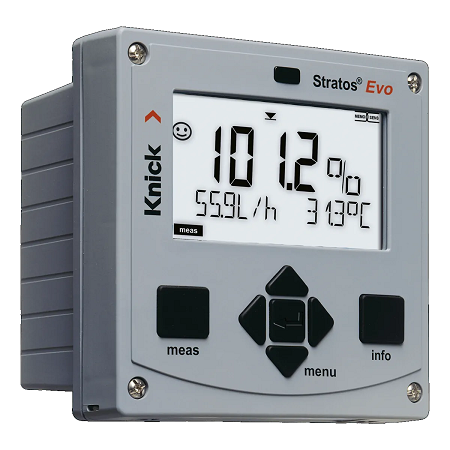

Industrial Transmitters Stratos Evo

Stratos Evo is the latest evolutionary stage of analyzers. The 4-wire multi-parameter device for measuring pH value, ORP, conductivity (conductive or inductive) or dissolved oxygen. The high-performance highPower broad-range power supply allows the operation with optical oxygen sensors. The HighPower supply offers another advantage thanks to the option of also supplying external 2-wire transmitters, for example pressure or flow transmitters. The respective signal can be displayed and processed via the 4 ... 20 mA input.

Categories: Analytics & Process, Knick | Process Analytics

Download PDF

Comprehensive features and flexibility enable universal application.
One device for pH/ORP, conductivity or oxygen (configurable)
Operation of Memosens sensors
Interchangeable modules for operation with conventional analog sensors
HighPower supply for operating digital optical oxygen sensors

Power supply and signal processing for external 2-wire transmitters (pressure, temperature)
A multi-color backlit display signals operating states
Approved for Ex Zone 2 (IECEx, ATEX)
HART
Global use thanks to broad- range power supply

Sensor input, digital

: Memosens pH or ORP sensors

Operating modes

: AUTO – Calibration with automatic buffer recognition (Calimatic)

: MAN – Manual calibration with the input of individual buffer values

: DAT – Data entry of premeasured electrodes

Sensor monitor

: Direct display of measured values from the sensor for validation
