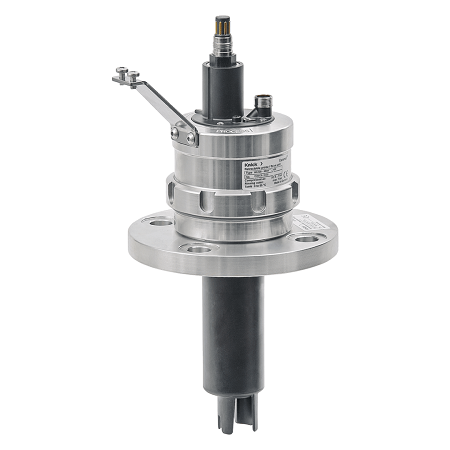

Fittings And Controllers Ceramat WA 150

Retractable fitting with ceramic sealing to the process for maximum measuring point availability. For measurement in highly viscous, abrasive, fibrous, or clogging process media. The no-wear process sealing and modular construction of the retractable fittings allow the drive to be disassembled for sensor adjustment, cleaning, or replacement during the ongoing process. Particularly in conjunction with the automatic cleaning and calibration system, Ceramat achieves maximum measuring point availability with minimum maintenance effort. Also ideal for measurement with optical sensors.

Categories: Analytics & Process, Knick | Process Analytics

Download PDF

Virtually wear-resistant
Maximum and permanent tightness due to lapped and polished sealing surfaces
High mechanical strength
High-temperature stability
High chemical resistance
Sterilizable

Plug & play for all process media thanks to a central multiplug
Corrosion-proof design with smooth surfaces
All maintenance work possible on site
Drive easy to replace under process conditions
Cyclone rinsing for optimum cleaning effect
Cavity rinsing for accurate measured values and improved hygiene
Sensor dismount guard in conjunction with Uniclean 900/Unical 9000

Permissible process temperature	: During movement
Permissible process pressure	: During movement Static in service position
Air supply	: 4 … 7 bar
Immersion depth	: Approx. 135 mm, depending on the process connection
