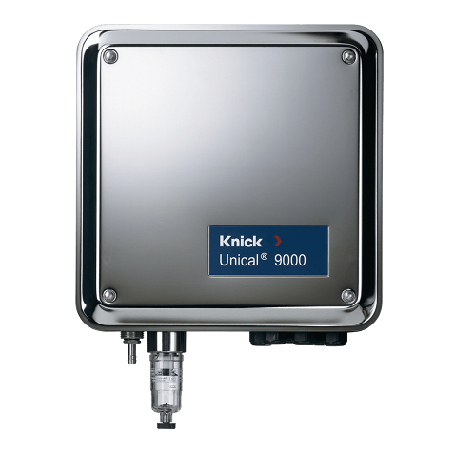

Control Systems Unical 9000

The electro-pneumatic controller for fully automated pH measurement, cleaning, and calibration In combination with the Protos process analysis system and the SensoGate or Ceramat sensor lock-gates, Unical oers the ideal functionality of a complete system for automatic process control of a pH measurement. It allows highly accurate measurements to be taken, even with dicult process conditions such as high pressure, high temperatures, and high levels of impurities. The system can be installed next to the process, within the hazardous area.

Categories: Analytics & Process, Knick | Process Analytics

Download PDF

consistent enclosure concept for all devices
easy assembly and retrofitting
tidy hose guiding
no entrainment and back mixing due to separate routing of the media

automatic 2-point calibration
time-controlled cleaning and checking
cleaning with water and additional cleaning solution
reduced maintenance error due to automatic calibration

Compressed air	: oil- and condensate-free
Permitted pressure range	: 4 … 10 bar
Pressure monitoring	: automatic monitoring, message
Rinse water	: filtered 100 μm
Permitted pressure range	: 2 … 6 bar
