Products

by AXIS

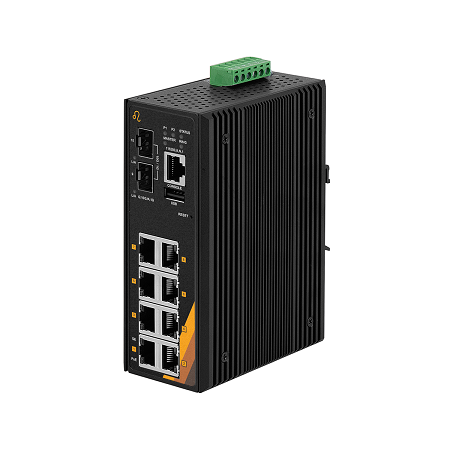

8-port 10/100/1000Base-T(X) Gigabit Ethernet with IEEE 802.3af/at Compliant PoE+
2-port 1G/10GbE SFP+ slots
Multiusers account for security
Configuration: http, https, CLI Command, Telnet, SNMP, SSH
Network Redundancy support: G.8032 ERPS,RSTP,MSTP
Supports Static routes for routing function
Supports RADIUS, TACACS+ authentication protocol
Supports QoS, LACP bandwidth control
Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
PoE ping alive function for PoE ports power recycle

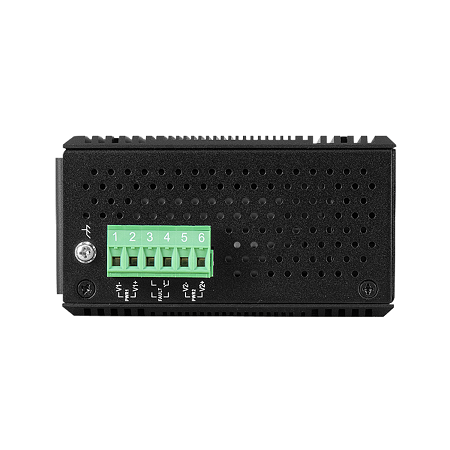

Redundant power inputs design, 48-55VDC

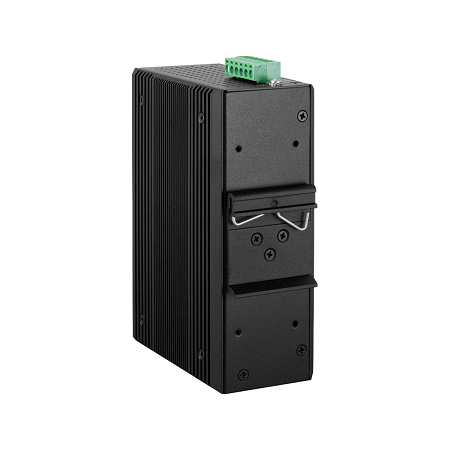

DIN-Rail Mounting, Wall Mounting design
Operating Temperature Range - STD: -40°C ~ 60°C
