by AXIS

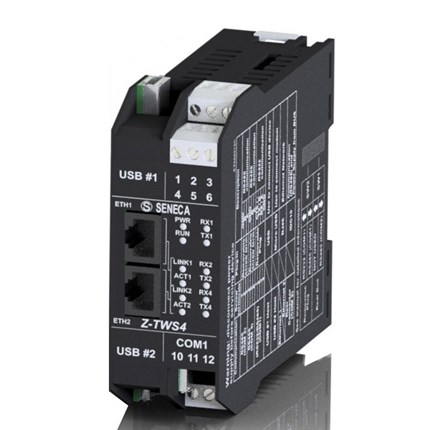

Z-TWS4 is a high performance control unit with 4 I/O built-in channels, 1GB Flash memory, 64GB RAM, nr.1 CAN port, nr.4 seral ports, nr.2 USB ports, nr. 2 Ethernet ports and 1 Micro SD card slot up to 32GB. Suitable for energy application (IEC 60870-5-101, IEC 60870-5-104, IEC 61850) and plant automation (Straton - Soft PLC IEC 61131-3). Z-TWS4 is also a CPU Linux-based for data acquisition and control application. Through to the integration with IDE Straton environment, Z-TWS4 supports specific communication protocols in the energy applications such as IEC 60870, IEC 61850.
Categories: Automation & IOT, Seneca | Automation Interface, RTUs
Power Supply :11-40 Vdc; 19-28 Vac
Power Consumption : Max 6 W
Isolation : Max 1.500 V
LED Status : indicators Power Supply ,Ethernet Communication. Ethernet Data Transmission, Serial Data , ransmission
Protection Degree : IP20
Operating Temperature :-20 to +55°C
Dimension : 100 x 112 x 35 mm
Weight : 250 g
