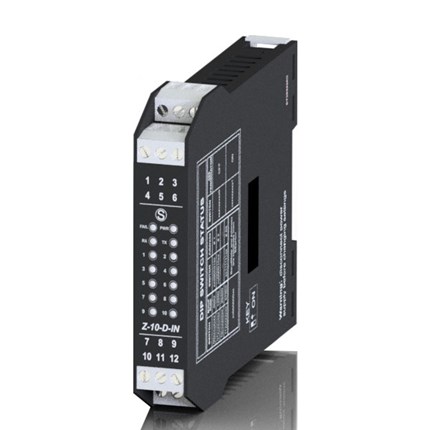

The Z-10-D-IN module acquires 10 single-ended digital signals, then converts them to a digital format (IN 1-10 state). The supported communication protocol is Modbus RTU. The following counters are available: All 10 counters are in 32 bits format (backupped on a Not volatile RAM) For all 10 inputs TON/TOFF/Frequency measures are available.
Categories: Automation & IOT, Seneca | Automation Interface, I / O Modules
Acquisition of digital signals from sensor: Reed, NPN, PNP, Proximity, contact, etc…
Counters are saved to a non volatile memory (NVM FeRAM) Input signals can be filtered 32 bits Pulse counters for digital signals, with max frequency < 2500 Hz
Measure of Frequency / Period / Ton and Toff
Advanced pulse management for digital signals
Up to 10 sensors power by internal supply voltage (Vaux=16V)
Node address and baud-rate configurable from Dip-Switches
RS485 serial communication with MODBUS-RTU protocol
Input Number : 10
Input filter : Cut-off frequency configurable
Filter : Configurable
Protection : This module provides inputs and power supply (Vaux) protection against the overvoltage surge transient by transient suppressor TVS (600W/ms)
