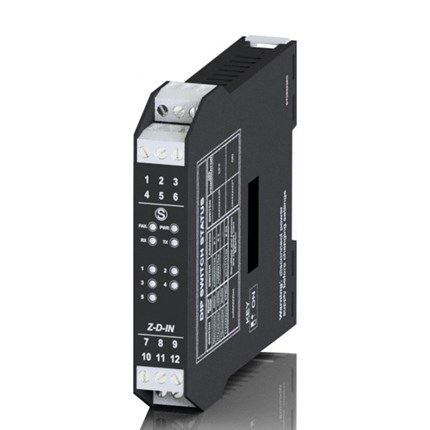

Z-D-IO has N.6 digital inputs, N.2 SPST relays, capacity of 2Aac, 250 Vac. It can be used as simple Input/Output module or, through dip-switches, is possible to acticate special functions to drive motors, pneumatic and motorised valves.The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.
Categories: Automation & IOT, Seneca | Automation Interface, I / O Modules
It is possible to add/remove the module to/from RS485-bus without disconnecting the communication or power supply.
It is possible to switch automatically RS485 to RS232 or vice versa.
It is possible to choose the Z-D-IO functioning modality by Dip-Switches.
Internal logic to control the motors, pneumatic valve, motorized valve.
Configuration of the module (node) address and baud-rate by Dip-Switches.
Power supply : 10-40 Vdc / 19-28 Vac / 50-60 Hz
Power consumption : 2,5 W
Isolation : 1.500 Vac (3 way)
Power transducers : Yes
Status Indicators : Power supply, error, data transmission, data reception, input status
Protection Degree : IP20
Protocol : ModBUS RTU slave
