by AXIS

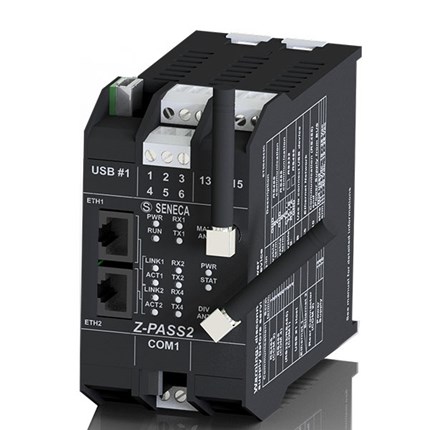

Z-PASS2-S is a high performance multifunction controller including PLC, routing and remote access functions. The device is based on Straton softPLC with web server, VPN and 3G + or 4G LTE modem/route. Equipped with nr.2 Fast Ethernet ports (managed in Switch mode and LAN / WAN), Nr. 1 RS232/RS485 port, Nr.2 RS485 ports and nr.1 USB host 2.0 port, Z-PASS2-S supports ModBUS TCP Server, ModBUS RTU Master/Slave, FTP/SFTP Server, HTTP/HTTPS Server, OpenVPN, SLL and – optionally - Energy Management protocols (IEC 60870-101, IEC 60870-104, IEC 61850). The controller has nr.1 digital input for remote secure security, nr.1 digital output VPN signalling connection and nr.4 digital configurable channels. The device is progammable via Z-NET4 (SENECA system configuration environment) and web server. It includes a ARM9 processor, 1 GB Flash, 64 MB RAM and a Micro SD slot up to 32 GB. Integrated into LET’S platform for remote assistance and telecontrol, ZPASS2- S can support Point-To-Point or Single LAN connections.
Categories: Automation & IOT, Seneca | Automation Interface, Dataloggers
|
Power supply |
: 19..40 Vdc; 19..28 Vac |
|
Power consumption |
: Typical 4 W @ 24Vac, Max 6 W |
|
Operating Temperature |
: -20 °C..+65 °C |
|
Isolation |
: 1500 Vac |
|
Protection degree |
: IP40 |
