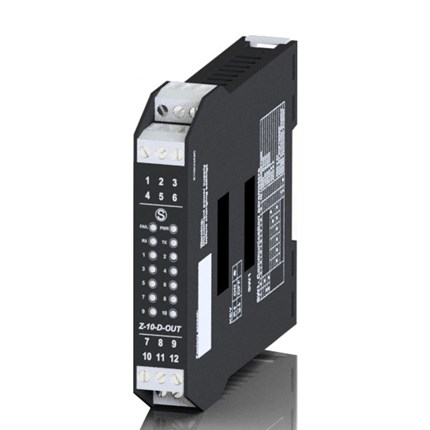

Z-10-D-OUT is used to drive N.10 MOSFETS from all of the control systems which are able to communicate with the transmission protocol MODBUS RTU through the RS485 serial interface. The digital output max load is 0,5 A (inductive) and 0,5 A (resistive) with maximum switch-on / switch-off cycle frequency of 2 cycles/ second. The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.
Categories: Automation & IOT, Seneca | Automation Interface, I / O Modules
It is possible to manage the output state if the interval time of RS485-bus communication failure is greater than a configurable time (up to 2000sec)
Management of the output state if the interval time of a load short-circuited is greater than a configurable time (up to 8sec)
It is possible to measure and control the outputs supply Vext.
Configuration of the module (node) address and baud-rate by Dip-Switches.
It is possible to add/remove the module to/from RS485-bus without disconnecting the communication or power supply.
Power supply : 10-40 Vdc / 19-28 Vac / 50-60 Hz
Power consumption : 1.5 W
Isolation : 1.500 Vac (3 way)
Protection Degree : IP20
Dimension : (W x H x D) 17.5 x 100 x 112 mm
Interface : 2 wire RS485
Speed : Up to 115.200 bps
