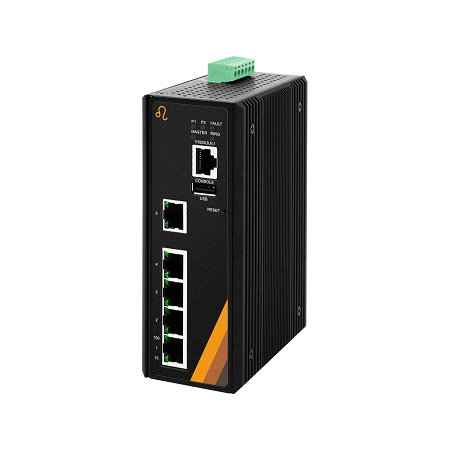

5-Port Managed Ethernet Switch

• 5-port 10/100Base-T(X) Fast Ethernet
• Multi-users account for security
• Configuration: HTTP, HTTPS, CLI Command, Telnet, SNMP, SSH
• Network Redundancy support: G.8032 ERPS, RSTP, MSTP
• Supports Static routes for routing function
• Supports RADIUS, TACACS+ authentication protocol
• Supports QoS, LACP bandwidth control
• Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
• Redundant power inputs design, 12-48VDC

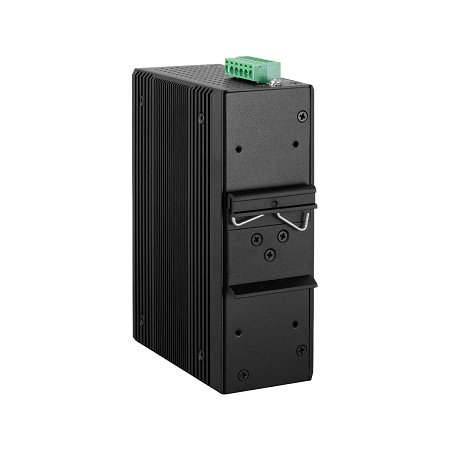

• DIN-Rail Mounting, Wall Mounting design
• Operating Temperature Range - STD: -10°C ~ 65°C, EOT: -40°C ~ 75°c

Categories: Automation & IOT, Leonton | Industrial Ethernet Switch, Managed Switch

Download PDF
