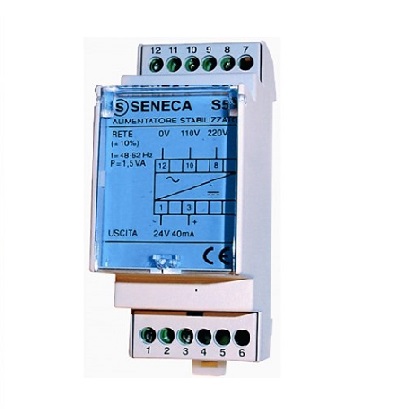

Current Loop Power Supply S50
Stabilized power supply with 115 / 230 Vac mains input and 24 Vdc 40 mA output. Used industrially to power instruments in 4-20 mA current loop or to power from the mains instruments that require 24 Vdc stabilized voltage.
Categories:
Automation & IOT, Seneca | Automation Interface, RTUs
Download PDF
- The input is protected against line overvoltages by means of a varistor.
- The insulation between the mains and low voltage circuits is 4500 Vac.
- The output is self-protected against short circuits.
- The self-extinguishing Noryl case is the width of 2 DIN modules and is designed to fit on 35 mm mounting rail (DIN 46277).
- The input is protected against line overvoltages by means of a varistor.
- The insulation between the mains and low voltage circuits is 4500 Vac.
- The output is self-protected against short circuits.
|
Power supply
|
: 115 / 230 Vac +/- 10% 50 / 60 Hz
|
|
Power consumption
|
: 7,5 VA
|
|
Outputs
|
: + 15 Vdc 350 mA and – 15 Vdc 75 mA
|
|
Operating temp.
|
: – 10 / + 60 °C
|
