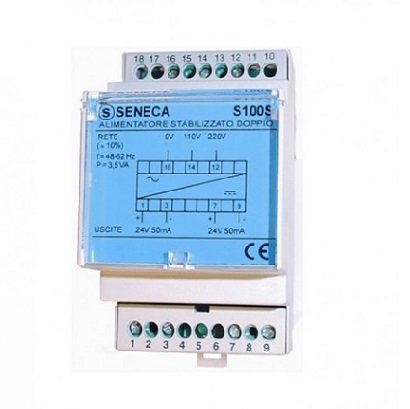

Dual stabilized power supply with 115 /230 Vac mains input and two galvanically insulated independent outputs, 24 Vdc 50 mA each.Used industrially to power instruments in 4-20 mA current loop or to power from the mains instruments that require a 24 Vdc stabilized voltage.
Categories: Automation & IOT, Seneca | Automation Interface, Energy Meters
The input is protected against line over-voltages by means of a varistor. The insulation between the mains and low voltage circuits is 4500 Vac. The outputs are self-protected against short circuits.
The input is protected against line over-voltages by means of a varistor. The insulation between the mains and low voltage circuits is 4500 Vac. The outputs are self-protected against short circuits.The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on 35 mm mounting rail (DIN 46277).
Power supply : 115 / 230 Vac +/- 10% 50 / 60 Hz
Power consumption : 3,5 VA
Outputs : two 24 Vdc 50 mA independent stabilized outputs, galvanically insulated
Operating temp. : – 10 / + 60 °C
Humidity : 90 % a 40 °C (non-condensing)
Dimensions (b x h x d) : 52,5 x 95 x 72 mm
Weight : approx. 300 g.
