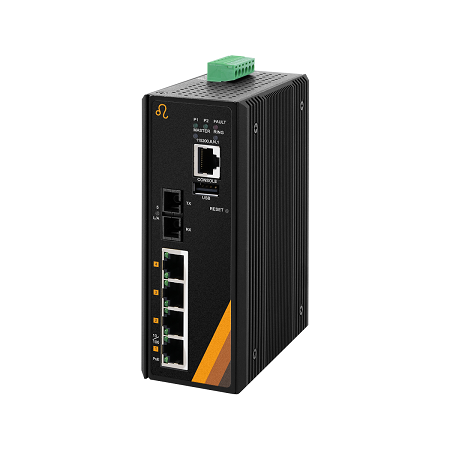

5-Port Industrial PoE+ Managed Ethernet Switch | 4 ETH(POE) + 1 FX

• 4-port 10/100Base-T(X) Fast Ethernet with IEEE 802.3at Compliant PoE+
• 1-port 100Fx - SC/ST connector (Multi/Single Mode)
• Multiusers account for security
• Configuration: http, https, CLI Command, Telnet, SNMP, SSH
• Network Redundancy support: G.8032 ERPS,RSTP,MSTP
• Supports Static routes for routing function
• Supports RADIUS, TACACS+ authentication protocol
• Supports QoS, LACP bandwidth control
• Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
• PoE ping alive function for PoE ports power recycle
• Redundant power inputs design, 12-55VDC
• Built-in Power Booster Design for PoE/PoE+ Output

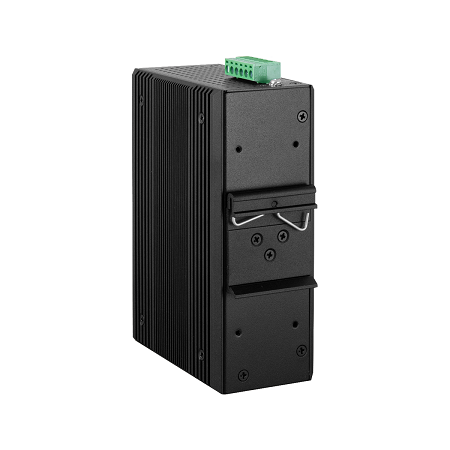

• DIN-Rail Mounting, Wall Mounting design
• Operating Temperature Range - STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C

Categories: Automation & IOT, Leonton | Industrial Ethernet Switch, Managed Switch

Download PDF
