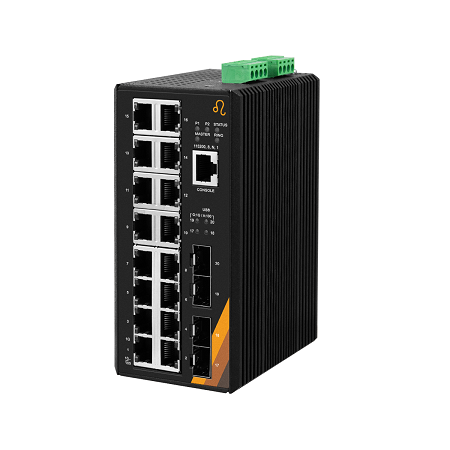

20-Port Industrial Gigabit Managed Ethernet Switch | 16 ETH + 4 SFP

• 16-port 10/100/1000Base-T(X) Gigabit Ethernet
• 4-port 100/1000(F)X SFP slots
• Multiusers account for security
• Configuration: http, https, CLI Command, Telnet, SNMP, SSH
• Network Redundancy support: G.8032 ERPS,RSTP,MSTP
• Supports Static routes for routing function
• Supports RADIUS, TACACS+ authentication protocol
• Supports QoS, LACP bandwidth control
• Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security

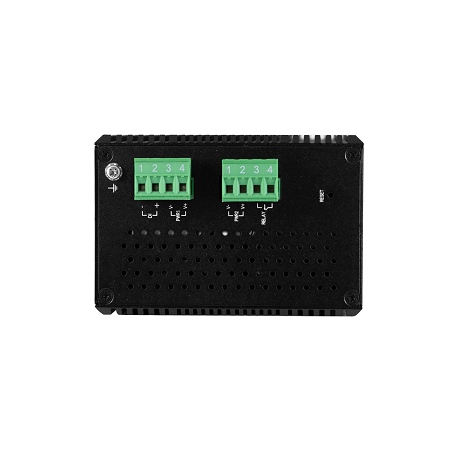

• Redundant power inputs design, 12-48VDC

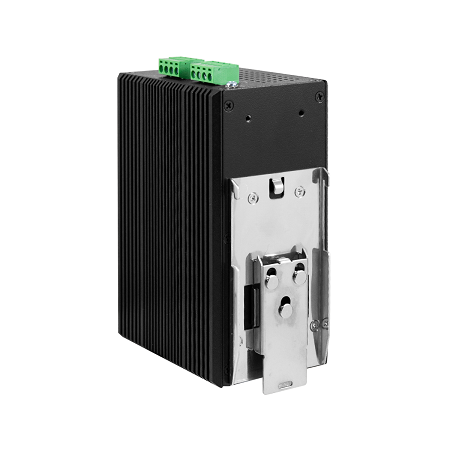

• DIN-Rail Mounting, Wall Mounting design
• Operating Temperature Range - STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C

Categories: Automation & IOT, Leonton | Industrial Ethernet Switch, Managed Switch

Download PDF
