by AXIS

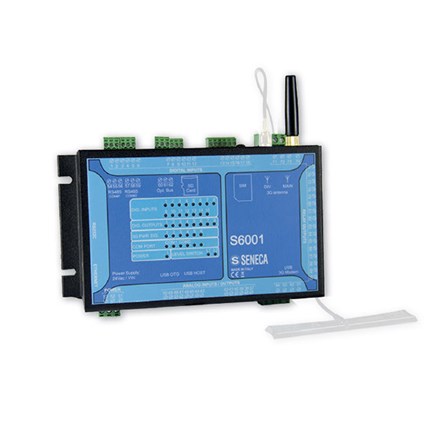

The S6001-RTU is a compact all-in-one telecontrol unit with 31 channels. Thanks to the extended connectivity (3G +, Ethernet, Serial) the unit is expandable and can be interfaced with other systems through the support of protocols (ModBUS TCP-IP, ModBUS RTU) and allows communications to and from central units and the remote monitoring of the plants. Using the IEC 61131 Soft Logic on Straton platform, S6001-RTU can be used as a stand-alone control system. Features of compactness and technological concentration of the S6001-RTU allow a significant reduction in costs and an optimization of intervention times in remote control applications for water and general purpose networks.
Categories: Automation & IOT, Seneca | Automation Interface, RTUs
|
Power supply |
: 24 Vac/dc |
|
Power consumption |
: 10 VA max, 6 VA (typical) |
|
Removable terminals |
: 0,2..2,5 mm2 (AWG 24-12) |
|
Isolation |
: 1.500 Vac |
|
Protection degree |
: IP20 |
