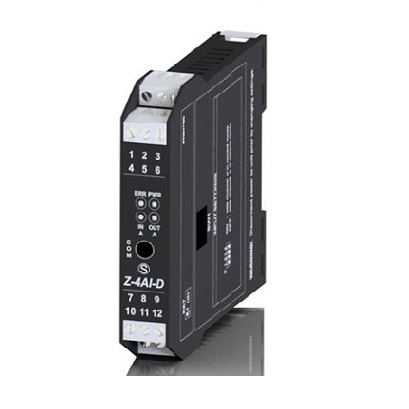

Z-4AI-D allows to acquire up to N.4 analogue inputs (ma or V) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market. The interface is composed of a CLOCK signal generated by the PLC (transistor output), a DATA signal and STROBE signal generated by the module.
Categories: Automation & IOT, Seneca | Automation Interface, RTUs
Z-4AI-D allows to acquire up to N.4 analogue inputs (ma or V) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market.
|
Power supply |
: 19..40 Vdc / 19..28 Vac / 50-60 Hz |
|
Power transducers |
: yes |
|
Dimension |
: (W x H x D) 17.5 x 100 x 112 mm |
|
Protection degree |
: IP20 |
