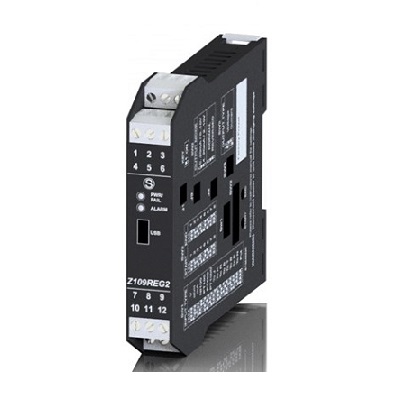

Z109REG2-1 is an advanced universal converter able to manage all analog signals (mA, V, PT100, Pt1000, Pt500, Ni100, TCs, Ohm) and convert / isolate it into mA/V standard signals. The device can be configured through dip-switches, PC software, handheld device or via mobile app. A digital contact is available as ALARM or STROBE (multiplexing). A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.The module has a Micro USB connector on the front side and can be configured by software or specific App for Android devices setting: beginning and end scale, additional input types, square root extraction, filter, burn-out etc.
Categories: Automation & IOT, Seneca | Automation Interface, RTUs
| Power supply | : 10..40 Vdc; 19..28 Vac |
| Max consumption | : 2,5 W (max) – 1,6 W (24 Vdc, 20 mA) |
| Power transducers | : Active input @ 2 wires (min 20 Vdc) |
| Interfaces | : Micro USB |
| Response time | : 35 ms (11 bit)..140 ms (16 bit) 35 |
