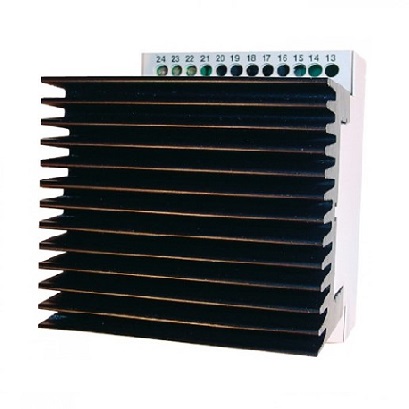

Dual stabilized power supply S200

Dual stabilized power supply with + 15 Vdc 350 mA and - 15 Vdc 75 mA outputs. 115 / 230 Vac mains input. Used industrially for powering instruments that require dual stabilized power supply at ± 15Vdc. The input is protected against line over-voltages by means of a varistor. The insulation between the mains and low voltage circuits is 4500 Vac. The outputs are self-protected against short circuits. The self-extinguishing Noryl case is the width of 4 DIN modules, with heatsink on the upper side, and is designed to fit on 35 mm mounting rail (DIN 46277).

Categories: Automation & IOT, Seneca | Automation Interface, RTUs

Download PDF

INPUT: programmable via dip switches for 0 – 20 mA and 4 – 20 mA current (with both active and passive connection) or for 0 – 5 Vdc, 1 – 5 Vdc, 0 – 10 Vdc and 2 – 10 Vdc voltage.
INTEGRATION CONSTANT programmable for scale end from 1 pulse every 27 minutes to 20 pulses per second.

EXTREMELY SIMPLE CALIBRATION only requiring the use of an ordinary digital tester.
Two signaling LEDs on the front panel indicate power on and output pulse.
The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on a 35 mm mounting rail (DIN 46277).

Power supply	: 115 / 230 Vac +/- 10% 50 / 60 Hz
Power consumption	: 7,5 VA
Outputs	: + 15 Vdc 350 mA and – 15 Vdc 75 mA
Operating temp.	: – 10 / + 60 °C
