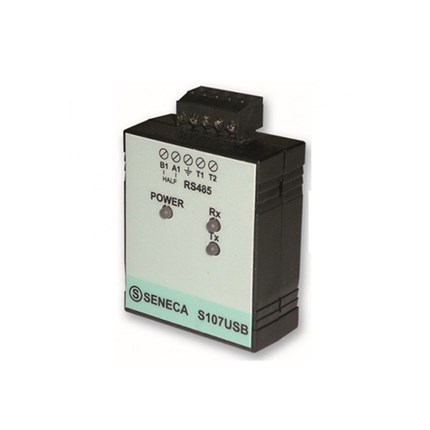

S107USB is an interface able to implement a RS485 serial port by using a PC USB port.

The available drivers will recognize the serial interface as a standard serial port; so the use of the product is directly allowed through any software able to communicate with the standard serial ports of the operating system (COM1, COM2, etc). RS485 and USB ports are isolated from each other at 1500 V.

Power supply : Through USB port

Power consumption : 60 mA

Isolation :1.500 Vac (2 way)

Status Indicators : Power supply, data transmission, data reception

Protection Degree : IP20

Operating Temperature : 0 to+55°C

Dimension : (W x H x D) 40 x 48 x 20,17 mm
