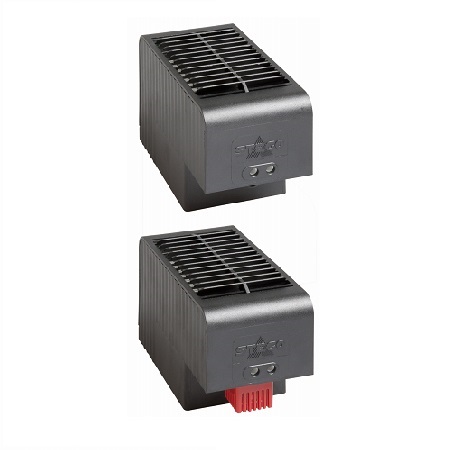

The compact CS 032 high-performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures. The plastic housing provides protection against contact with current-carrying components via double insulation (protection class II). The fan heater is also available with an optional fixed-point thermostat as the CSF 032. These series were designed to accommodate DIN rail or screw mounting.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: PTC resistor – temperature limiting |
|
Overheat protection |
: Built-in temperature limiter |
|
Axial fans, ball bearing |
: Service life 50,000 h at 77 °F (25 °C) |
|
Housing |
: Plastic, UL 94V-0, black |
|
Connection |
: 2-pole terminal AWG 16 max. (1.5 mm²), torque 0.8 Nm max. |
|
Operating/Storage temperature |
: -40 to +140 °F (-40 to +60 °C) / -40 to +158 °F (-40 to +70 °C) |
|
Protection type/Protection class |
: II (double insulated) / IP20 |
|
Dimensions |
: 5.9 x 3.5 x 2.6″ (150.5 x 88 x 66 mm) |
