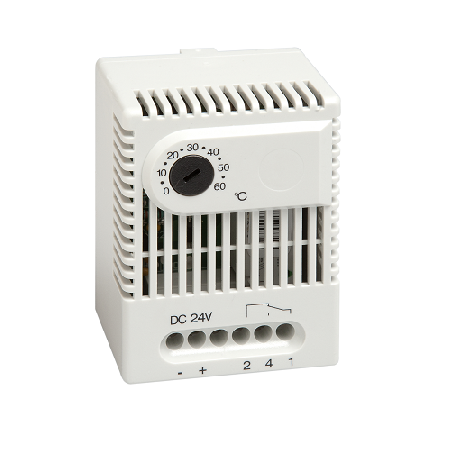

The ET 011 is an electronic thermostat for regulating high-performance DC 24 V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (change-over) contact. A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical thermostats.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Switching difference (Temperature) |
: Approx. 5.4 °F ± 1.8 °F tolerance (3 K ± 1 K) |
|
Sensor element |
: PTC |
|
Contact type |
: SPDT / change-over contact |
|
Dimensions |
: 2.54 x 1.65 x 1.5″ (64.5 x 42 x 38 mm) |
|
Connection |
: 5-pole terminal, clamping torque 0.5 Nm max.: solid wire – AWG 14 max. (2.5 mm²) stranded wire1 – AWG 16 max. (1.5 mm²) |
|
Housing |
: Plastic, UL 94V-0, light grey |
|
Storage temperature |
: +14 to +140 °F (-10 to +60 °C) / -49 to +176 °F (-45 to +80 °C) |
|
Protection type/Protection class |
: IP20 |
