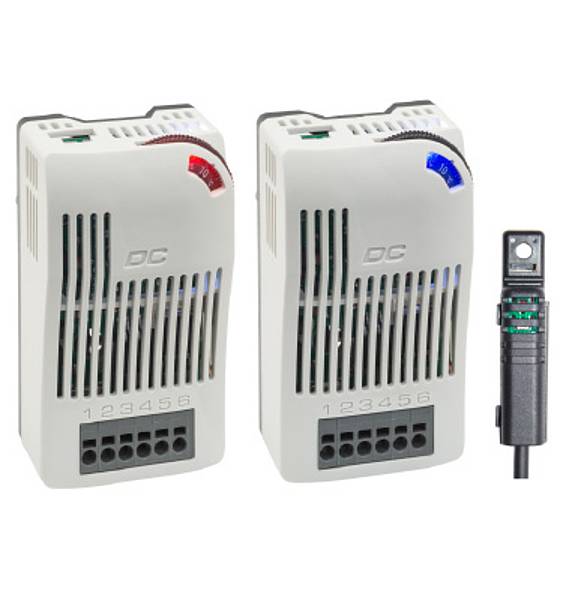

The electronic thermostat with an integrated switch module is used to control DC-powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans, or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise temperature measurements. Additionally, this thermostat is available in versions that not only measure temperature via the external sensor but also the relative humidity.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Switching difference (Temperature) |
: 3 K (±1 K tolerance) at +77 °F (+25 °C), 50 % RH |
|
Max. reaction time |
: Approx. 5 sec |
|
External sensor |
: Cable 2 m with snap in connector (included in the delivery) |
|
Contact type |
: Contact maker NO (MOSFET) or contact breaker NC (MOSFET) |
|
Dimensions |
: 3.7 x 2.1 x 1.7″ (93 x 53 x 44 mm) |
|
Connection |
: 6-pole terminal: stranded wire1 AWG 16 (1.5 mm²); |
|
Housing |
: Plastic, UL 94V-0, grey (bicolor) |
|
Storage temperature |
: -40 to +176 °F (-40 to +80 °C) |
|
Protection type/Protection class |
: IP20 |
|
Approvals |
: UL File No. E164102, VDE, EAC |
