by AXIS

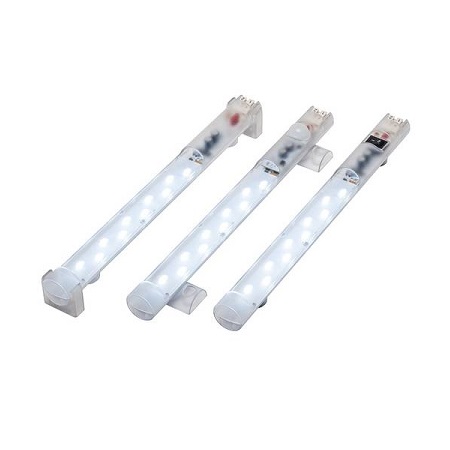

The LED 025 light series is suitable for all types of panels and enclosures, especially where space is at a premium. These lights have a very long service life due to the use of LED technology. They are available with powerful non-slip rubberized magnets allowing them to be easily positioned in any steel enclosure. Screw and clip mounting are also available as options. The Ecoline series is a simplified version of the standard LED 025 light and has a dual cage clamp for connection instead of connectors. Nonetheless, it is suitable for daisy-chaining and allows for up to 10 lights to be connected to each other.
Categories: Enclosure Products, Stego | Thermal Management, Lightning
| Luminosity | : 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W light bulb) |
| Lamp type | : LED, angle of radiation 120° light color: daylight, color temperature: 6,000 to 7,000 K |
| Connection | : 2-pole dual cage clamp for solid wire AWG 14 (2.5 mm2), and stranded wire (wire end ferrule) AWG 16 (1.5 mm2) |
| Housing | : Plastic, translucent |
| Operating temperature | : -22 to +140 °F (-30 to +60 °C ) / -40 to +185 °F (-40 to +85 °C) |
| Protection class | : IP20 / II (double insulated) |
